die-cutting presses fo specimen dies and depaneling

A Complete Range of Presses for Die-cutting and PCB Depaneling

Pioneer Presses

From manual toggle presses to pneumatic die-cutting presses built for cleanroom applications, Pioneer-Dietecs manufactures a full line of presses for medical and industrial die-cutting applications including laboratory testing, cleanrooms, and PCB depaneling. To learn more about Pioneer Depaneling presses and accessories, please visit our depaneling site.

Pioneer Press Models

Manual Toggle Presses

Pneumatic Presses

How to Order a Pioneer Press

Ordering Online

Pioneer offers several press models for purchase online:

Ordering a pneumatic press

Pioneer offers standard models and pricing to meet most typical applications. To view pricing and specifications for standard models, view our press model specifications below.

Request a Quote

To request a quote for a custom-sized press, send us your work area size requirements and any other specifications for your press, or call 781-682-7900.

Request Quote

Manual Toggle Presses
Manually-operated toggle presses are ideal for singulation of small PCB’s and all types of small die-cutting.
Pioneer-Dietecs offers three manually-operated toggle presses for your small die cutting needs:
3/4 Ton Toggle Press

This small toggle press is a good choice for smaller die-cutting projects. This press develops about 3/4 ton of force and can handle dies about 7” long, depending upon the material.

Price: $1275.00*

Order
1 Ton Toggle Press

Our 1 Ton toggle press develops 1 ton of pressure and has a work area of  7″ by 8″.  This press handles dies up to 7″ long.

Price: $1,575.00*

Order
1 1/2 Ton Toggle Press

1 1/4 Ton Toggle Press

Our 1 1/2 Ton toggle press develops about 1 1/2 tons of force and can handle dies up to 7” long, depending on the material.

Price: $2125.00*

Order
Toggle Presses and Accessories
Product Pressure Work Area Price
3/4 Ton Toggle Press 3/4 ton 5″x 7″ $1,275.00 Order
1 Ton Toggle Press 1 ton 7″x 8″ $1,575.00 Order
1 1/2 Ton Toggle Press 1 1/2 tons 5″x 8″ $2,125.00 Order
Toggle Press Cutting Pads(3) N/A N/A $96.00 Order
Universal Shank for Toggle Press N/A N/A $150.00 Order
Pneumatic Presses

Pioneer pneumatic presses are cost effective and easy to operate with no electricity required.

Die-Cutting Complete in Seconds

Just load the die and part to be die-cut and close the shuttle table. The table locks in the closed position and the press cycles.

Pneumatic Press Features

  • CE certification
  • Cleanroom safe
  • Die changes in 30 seconds or less
  • Micrometer stroke adjust for die-height setting available as an option
  • Replaceable nylon or plastic cutting pad included
  • Available with 2 to 22 tons of force
  • Manually-operated or semi-automatic cycle of press ram
  • Inexpensive to hook-up with no electricity required

Safety

The press is in a closed box with multiple safety features and no open areas for fingers or other body parts. The redundant safety devices and lack of “pinch” areas eliminate most safety issues.

Semi-Automatic S3500 Press


Benchtop Presses
New Benchtop 8 x 8 Press

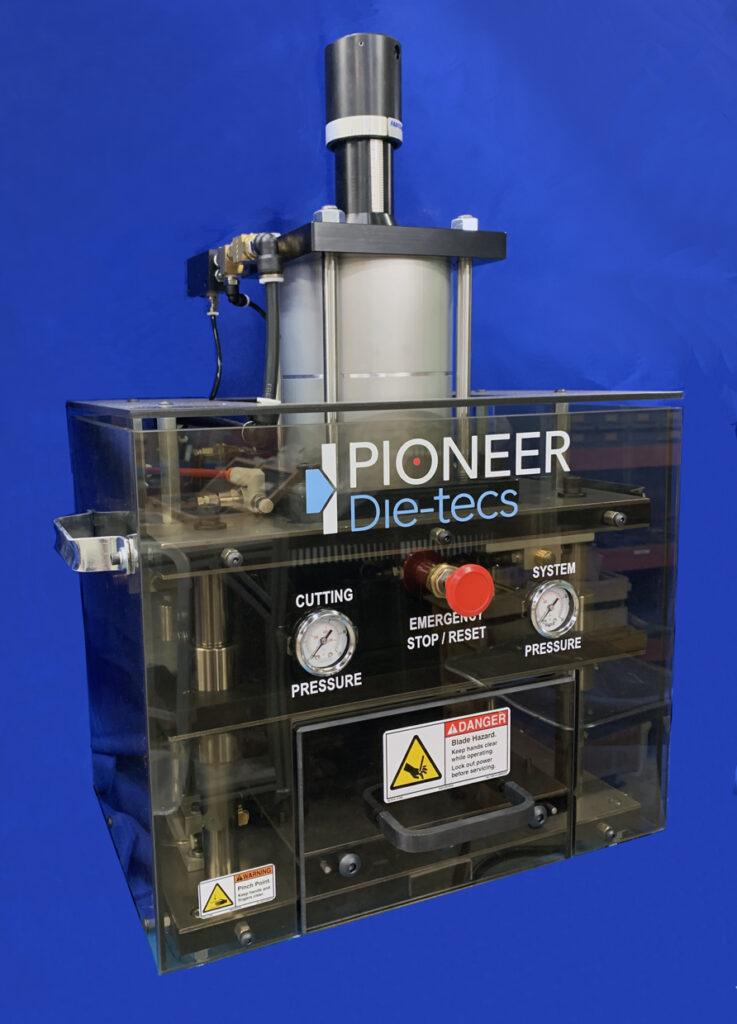

Pioneer-Dietecs die-cutting press 400

M400 Benchtop Press

M400 press reconfigured to offer 68% more die-cutting work space at a lower price.

Work Area: 8″ x 8″
Pressure: 2 Tons
$6,995*

Order

M500 Benchtop Press


Benchtop Press Illustratoion

Benchtop Press Features

  • Rugged four-post construction
  • Micrometer stroke adjust included for close tolerance dial-in and kiss-cutting
  • Fast stroke cycle time of about 1 second
  • Quiet, clean operation – no messy hydraulic oil
  • Benchtop portability
  • All pneumatic – no electricity required
  • CE Approved “Safety Box” – no pinch points, lock-outs when under operation

Benchtop Press Specifications

Model Work Area Pressure Price Features
M250
6″ x 6″ 1-1/2 Tons $6,000* Manual
M400
8″ x 8″ 2 Tons $6,995* Manual
M500
8-5/8″ x 13″ 2 Tons $12,750* Manual
M600
14″ x 14″ 6 Tons $19,445* Manual

*Price based on general specifications and subject to change without notice. To get an exact price for a press, request a quote based on your specifications.

Request a Quote

To request a quote for a custom-sized press, send us your work area size requirements and any other specifications for your press, or call 781-682-7900.

Request Quote
Free-Standing Presses
pneumatic specimen die-cutting press

S4000 Free-Standing Depaneling Press for Singulation of Printed Circuit Boards

Free-Standing Press Specifications
Model 500FS M1000 S2000 S3000Medical S3500 S4000
Type Manual
w/shuttle table
Manual w/shuttle table Semi-Automatic Semi-Automatic Semi-Automatic Semi-Automatic
Work Area 8-5/8″ x 13-3/16″ 12-1/2″ x 15″ 12-1/2″ x 15″ 14″ x 22″ 24″ x 26″ 15-1/2″ x 26″
Pressure 2-7 tons 5-15 tons 5-20 tons 10-15 tons 15-20 tons 15-22 tons
Envelope 24″ x 30″ 28″ x 38″ 28″ x 38″ 30″ x 40″ 37″ x 64″ 24″ x 60″
Height 45″ 45″ 45″ 48″ 53″ 53″
Cycle Counter optional optional optional optional optional optional
Powered Shuttle Table N/A N/A yes yes yes yes
Robotic Integration no no yes yes yes yes
Cleanroom option option option yes option option
Base Price* $13,995 $19,750 $28,750 $55,000 $48,000 $52,750

Cleanroom Presses

Clean, quiet presses for cleanroom applications

Pneumatic die cutting pressDesigned specifically for cleanrooms, Pioneer cleanroom die-cutting presses are all pneumatic and built with our proprietary air-logic system for clean, quiet operation. The Pioneer-Dietecs cleanroom press is suitable for all cleanroom die-cutting applications including medical specimen dies to all ASTM standards.

The cleanroom die-cutting press features a NEMA pneumatics enclosure that’s water-tight, environmentally secure, and sturdy to protect against dust, splashing water, wash-downs, and other contamination. Cleanroom die-cutting presses are available in standard sizes or can be built to any size with custom features available to meet your requirements.

Semi-Automatic Cleanroom Press

Cleanroom Press Design Specifications
  • Standard sizes from from 6” x 6” to 24” x 24″ with any size available on request
  • Tonnage from 1 ½ to 18 Tons
  • Totally pneumatic presses with Pioneer-Dietecs proprietary Air-Logic
  • Can be configured for manual or semi-automatic operation
  • Cutting surface of stainless steel or FDA approved plastic
  • Custom features available to suit specific needs
Semi-automatic cleanroom pressPneumatic components enclosed in a waterproof box
  • Pneumatic plumbing between components consists of flexible tubing
  • Plumbing entering and exiting the cleanroom press is stainless steel tubing, stainless steel clad flexible hose, or equivalent
  • Pressure gauges available in stainless steel
  • All non-stainless pressure gauges mounted inside the enclosed box
Cleanroom Press hardware is stainless steel, anodized aluminum or powder-coated steel
  • Shuttle table handle is stainless steel
  • All aluminum components are anodized
All exhaust air connected to an external tank with check valve

The external tank has a pressure gauge attached with two exhaust output ports for venting outside the cleanroom.

Wash-down features available
  • Cleanroom press can be equipped to withstand wet processing in the cutting area (i.e. spraying with hydrogen peroxide for sanitizing)
  • No through holes on cutting plate
  • All tapped holes blind or plugged
  • Cutting table linear sliding rail of stainless steel or equivalent

Request a quote for a custom-sized press

To request a quote, send us your work area size requirements and any other specifications for your custom-sized press, or call 781-682-7900.

Request a Quote

To request a quote for a custom-sized press, send us your work area size requirements and any other specifications for your press, or call 781-682-7900.

Request Quote
